| 起源の場所 | 中国 |
| ブランド名 | Lanshuo |
| 証明 | CE |
| モデル番号 | LCN-1500 |

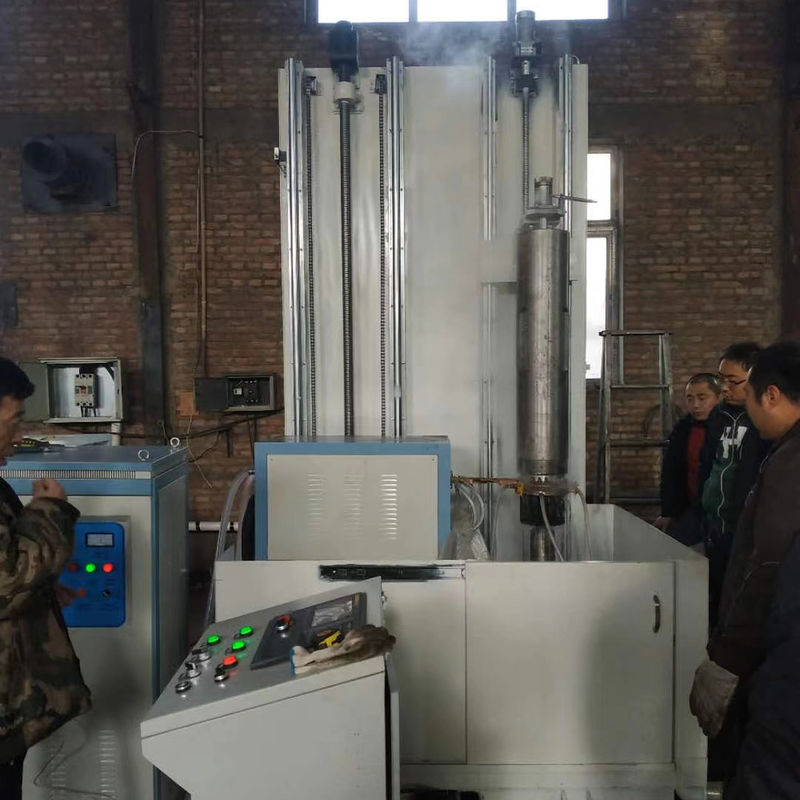

LCN-1500 CNC Induction Quenching Hardening Machine Tool
I. Main configuration of CNC Induction Quenching Machine Tool:
1. CNC system control;
2. Stepper motor drive;
3. Ball screw drive;
4. Cylinder linear guide rail, ball slider sliding;
5. AC variable speed motor drive sprocket chain, the light bar to rotate the workpiece;
6. AC gear motor drive screw, screw the top down;
7. Solenoid valve control water;
8. With a heating device control plug.
II. Main technical parameters of CNC induction quenching machine tools
Model | LSN-2000 | LSN-1500 | LSN-1000 | LSN-600 |
Max lengths of the clamping parts(mm) | 2050 | 1250 | 1050 | 650 |
Max length of quenching parts(mm) | 2000 | 1200 | 1000 | 600 |
The largest diameter quenching parts(mm) | 600 | 600 | 600 | 600 |
The largest total quenching parts (Kg) | 150 | 150 | 150 | 150 |
Spindle rotation speed (rps) | 0-200 | 0-200 | 0-200 | 0-200 |
Workpieces moving speed ( mm/s) | 1-60 | 1-60 | 1-60 | 1-60 |
Mobile positioning accuracy (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
III. Advantages of Our CNC Hardening Machine Tool:
1. The induction heating machine adopts IGBT modules, high efficiency, energy saving.
2. Environmentally friendly. Almost no oxide layer, produced no exhaust, no waste-water is generated.
3. Heating fast and uniform.
4. A unique cooling circulation system, ensure that the equipment 24 hours of continuous work.
5. Easy installation, simple operation.
6. Safe and reliable. No high voltage, very safe for operating people.
7. Machine power can be adjust step-less.
8. It has complete self-protect functions: such as many types of alarm lamps: over-current, over-voltage, over hot, water shortage etc, can also control and protect itself.
IV. Applications of Our CNC Hardening Machine Tool:
Shaft: Single heating spray hardening, segmental single heating spray hardening, continuous heating spray hardening, segmental continuous heating spray hardening.
Gear: Overall single heating spray hardening, single tooth single heating spray hardening, single tooth continuous heating spray hardening.
Disc-type workpiece:Overall single heating spray hardening, circumferential surface continuous heating spray hardening.
