| 起源の場所 | 中国 |
| ブランド名 | Lanshuo |
| 証明 | CE ISO |
| モデル番号 | LSW-30 |
1. Brief Introduction of Induction Heating Machine:
Induction heating machine adopts IGBT series and parallel induction heating technology as the core. This is a form of brazing that uses electromagnetic induction to heat the workpiece, which makes the brazing filler metals’ surface temperature rise rapidly till melting, connecting finally.

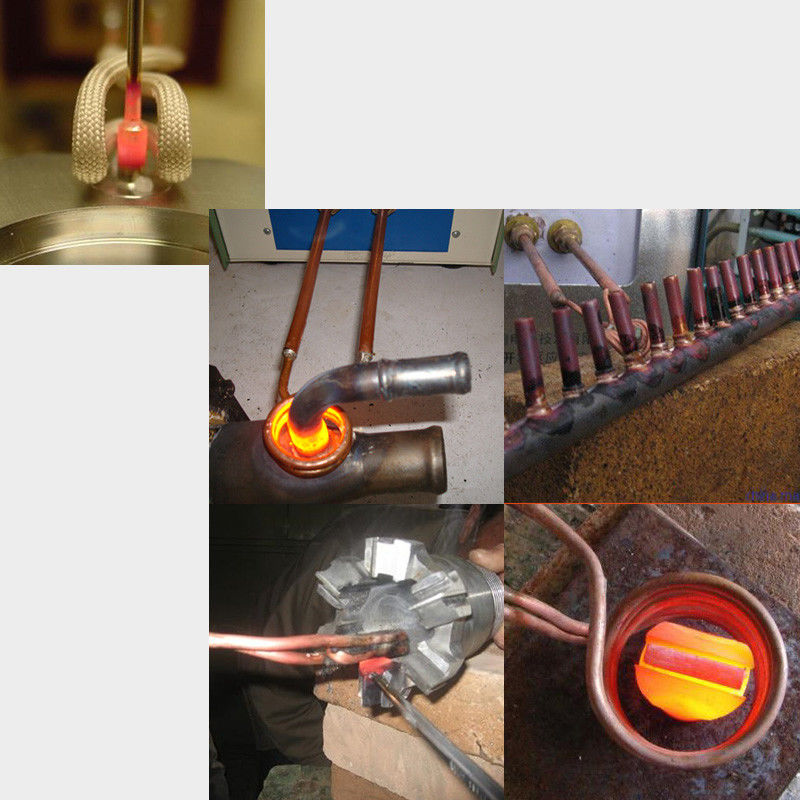

2. Induction Brazing Welding Machine Application:
(1) metal tube brazing, such as copper tube, steel tube, and aluminum tube.
(2) alloy cutter brazing, such as lathe tool, milling tool, planer, saw blades, reamer, boring knife.
(3) mining tools brazing, such as drill bits, cutting picks.
(4) carbide saw blade brazing: cutter blade, serrated blade, diamond saw blade, marble saw blade, woodworking saw blade.
(5) metal welding: auto-accessories, motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
3. Technical Parameters of LSW-30 Induction Brazing Machine:
| Model | LSW-30 |
| Working Voltage | 3-phase 380V, 50/60HZ |
| Max input power | 30kw |
| Oscillation frequency | 25-40KHZ |
| Duty cycle | 100% |
| Cooling water flow | 25L/Min,0.15-0.2MPa |
| Weight | 48kg |
| Dimension (L*W*H ) | 690*290*600mm |
| Usage | metal heating, brazing,melting etc. |
4. Main characteristics of high frequency induction brazing welding machine:
(1) High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
(2) Energy saving: The induction brazing machine adopts IGBT from Siemens & LC series circuit design, saving energy up to 15%-30%.
(3) Low cost: The heating time is short, compared to other heating methods, significantly reducing the amount of metal loss.
(4) Easy for installation: Following the user manual, even non-professional persons can install the induction brazing machine easily.
(5) Stable operation: complete protection, make customers have nothing to worry about.
(6) No harm to the environment: The induction brazing machine uses electricity, producing little waste gas and water.
5. Service
Pre-sale service:
(1) Immediate reply to your inquiry.
(2) Experienced sales answer all questions in fluent English.
(3) Customized design is available.
(4) Detailed information of our products, and our company if needed.
After-sale service:
(1) Technical support, or alternative accessories if necessary.
(2) Guide installation, commissioning and test run.
(3) One year’s warranty. Once there is a trouble within one year, professional engineers and sales will be promptly appointed to help.
6. Certificates:
