| Place of Origin | CHINA |
| ブランド名 | ZHENGZHOU LANSHUO |
| 証明 | CE |
| Model Number | LSW-200 |
| Parameter | Working voltage | 380V/50-60HZ |
| voltage range | 340V-420V | |
| Max input power | 200KW | |
| DC voltage | 500V | |
| DC current | 320A | |
| Input power control switch | 3*400A | |
| Enter the power cord | 120mm² Copper wire | |
| Equipment ground wire | 1.5mm² Soft copper wire | |
| The heating frequency | 1-8KHZ | |
| Air switch | 3*450A | |
| Consumption of water | 0.2MPa | |
| Consumption of electricity | 130 degrees/hour | |
| Weight(after packing) | 400KG | |
| Dimension |
1200*760*2050mm, 1060*680*860mm |
|
| Cooling water installation | Control cabinet water interface quantity |
Water inlet:one Outlet:one |
| The number of auxiliary water outlets |
Water inlet:one Outlet:one |
|
| The pipe specifications |
Incoming water pipe: internal diameter 50mm Equipment outlet pipe: internal diameter 50mm |
| Name of accessories | Model | Quantity |
| IGBT modules | FF450R12KT | 4 pcs |
| Three-phase bridge | MDS500-17 | 1 pcs |
| Potentiometer | 3590SE-2 | 1 pcs |
| Relay | RXM2AB2P7 | 1 pcs |
| Main board | LSR-96-11 | 1 pcs |
| Driver board | LSQD-8 | 1 pcs |
| Control panel | LSMD-1 | 1 pcs |
| Control transformer | CKQ-5 | 2 pcs |
| Filter plate | LSYD-2 | 1 pcs |
| SCR drive board | LSKK | 1 set |

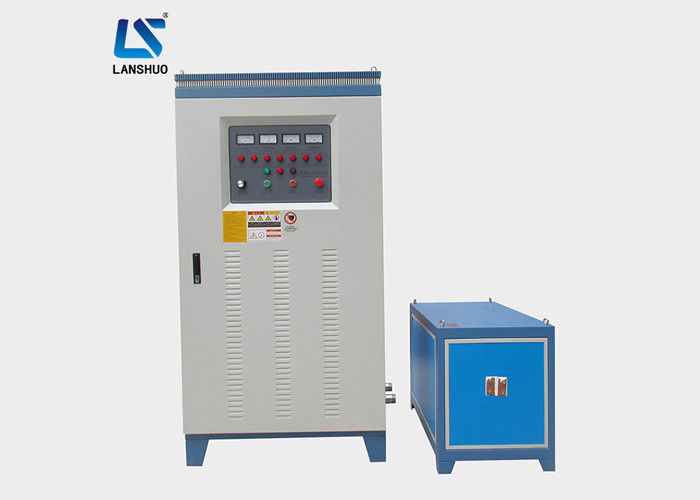

Pictures of LSW-200:
CE:
