High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
  • High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine

High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine

起源の場所 中国
ブランド名 ZHENGZHOU LANSHUO
証明 CE
モデル番号 LSW-16
製品詳細
力:
16KW
DCの流れ:
30a
DC電圧:
500V
入力電圧:
単相 220V 50-60HZ
熱する頻度:
30-80KHZ
空気スイッチ:
3*50A
グラウンドワイヤ:
1mm2
水圧:
0.15-0.2Mpa
電源コード:
6mm²copperワイヤー
入力電源制御スイッチ:
3*50A
機器の接地線:
1mm2 柔らかい銅線
ハイライト:

16KW induction heating machine

,

metal quenching induction heater

,

small induction welding machine

支払いと送料の条件
最小注文数量
1セット
価格
900USD-1500USD
パッケージの詳細
合板ケース
受渡し時間
3-5営業日
支払条件
T/T
製品説明
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine
Technical Specifications
Attribute Value
Power 16kw
DC current 30A
DC voltage 500V
Input voltage Single-phase 220V 50-60HZ
Heating frequency 30-80KHZ
Air switch 3*50A
Ground wire 1mm²
Water pressure 0.15-0.2MPa
Input power cord 6mm² copper wire
Input power control switch 3*50A
Equipment grounding wire 1mm² soft copper wire
Detailed Parameters
Power Installation
  • Input power cord: 6mm² copper wire
  • Input power control switch: 3*50A
  • Equipment grounding wire: 1mm² soft copper wire
Cooling Water Installation
  • Number of water in the control cabinet: water intake: two, water outlet: two
  • Water pipe specification: Inlet water pipe: inner diameter 12mm
  • Water outlet pipe: inner diameter 12mm

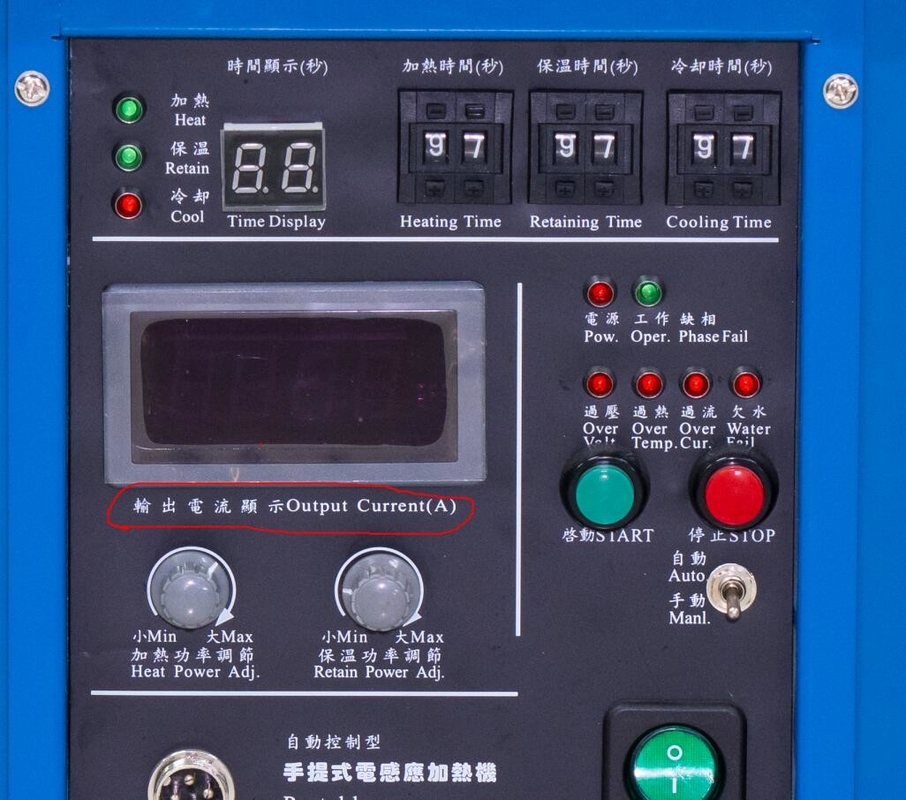

Product Images
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 0
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 1
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 2
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 3
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 4
Certifications
High Frequency Induction Heating Machine 16KW Metal Quenching Welding Small Induction Heating Machine 5
