| 起源の場所 | 中国 |
| ブランド名 | Lanshuo |
| 証明 | CE |
| モデル番号 | LSZ-70 |

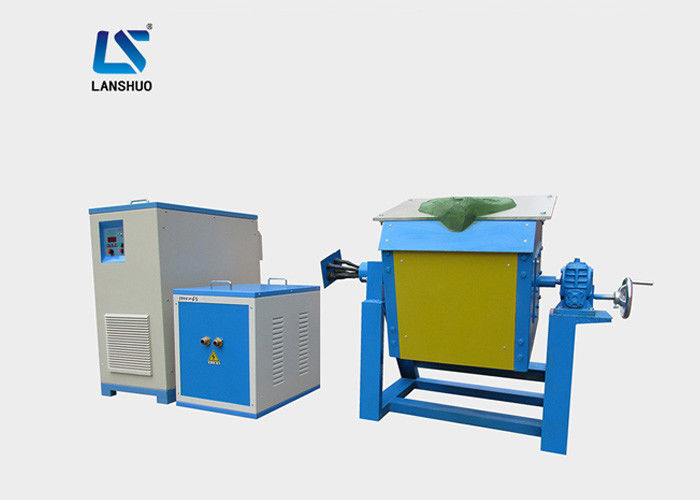

1. Electric Induction Melting Furnace Application:
a. melting iron, steel, copper, aluminum;
b. melting precious metals such as gold and silver;
c. melting ferrous and nonferrous metals;
d. melting metal alloys;
e. melting metal rods;
f. other melting work for metal products.
2. Main technical parameters of LSZ series induction melting furnace:
| Model | Power | Input current | Voltage | Oscillation frequency |
Connect- ing wire |
Control switch |
| LSZ-15 | 15kw | 18A | 3-phase 380 V, 50/60 Hz | 1-15KHz | 10mm2 | 3*40A |
| LSZ-25 | 25kw | 36A | 10mm2 | 3*60A | ||
| LSZ-35 | 35kw | 57A | 16mm2 | 3*80A | ||
| LSZ-45 | 45kw | 80A | 35mm2 | 3*120A | ||
| LSZ-70 | 70kw | 110A | 50mm2 | 3*150A | ||
| LSZ-90 | 90kw | 140A | 75mm2 | 3*225A | ||
| LSZ-110 | 110kw | 160A | 90mm2 | 3*225A | ||
| LSZ-160 | 160kw | 240A | 120mm2 | 3*300A |
3. Electric Induction Melting Furnace Feature:
a. Very easy to install and operate, Quickly study.
b. Ultra-small size, light weight, portable, occupies less than one square meter.
c. 24 hours uninterrupted smelting capacity.
d. Energy saving.
e. The furnace is to facilitate the replacement of different weights, different materials, different furnace way in order to accommodate each Kind smelting requirements.
f. The use of ultra-small frequency induction heating power supply frequency power, Its totally different from traditional furnace.
g. Heating through heat resistance, temperature uniformity.
h. The intermediate magnetic field on the molten metal with a magnetic stirring effect, and beneficial to ingredients are uniformly.
i. According to the recommended maximum smelting equipment and the amount of time each furnace smelting 20-60 minutes.
