Small Glass Melting Furnace Induction Melting Furnace

起源の場所	中国
ブランド名	Lanshuo
証明	CE
モデル番号	LSW-30 インダクション溶融機

製品詳細

タイプ:

誘導の溶ける機械

使用法:

熱溶融溶接溶接溶接

融解能力:

1〜5kgのガラス

定格電力:

30kW

電圧:

380V

入力電圧:

三相 380V 50/60 Hz

基本要素:

IGBTモジュール

振動周波数:

25〜40KHz

ハイライト:

small glass melting furnace

induction melting furnace for glass

compact induction furnace with warranty

支払いと送料の条件

最小注文数量

1セット

価格

USD 1500-2000 / set

パッケージの詳細

合板ケース

受渡し時間

前金を受け取った後5-7仕事日

支払条件

L/C、D/A、D/P、T/T、Western Union、MoneyGram

供給の能力

3000セット/年

製品説明

1kg 2kg 3kg 5kg Glass Melting Furnace Industrial Furnace Crucible Furnace

Product Brief Introduction

Our high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as the core. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.

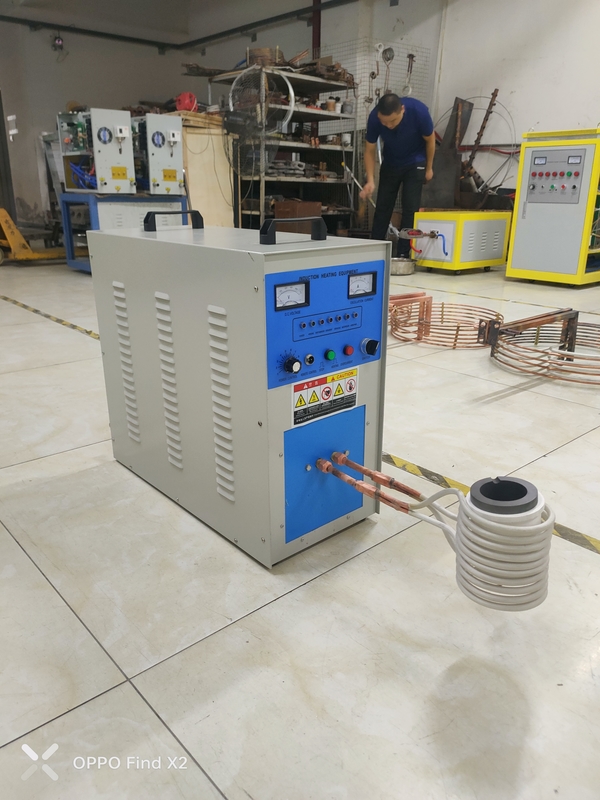

LSW-30 Portable Electric Stainless Steel Induction Melting Machine

Applications

Iron, pig iron, cast iron
glass, glass bottle
Steel, stainless steel, cast steel, carbon steel and bearing steel
Precious metals such as gold and silver
Copper, brass, bronze
Aluminum, aluminum alloy
Zinc, lead, tin, magnesium, nickel, titanium

Product Overview

The LSW series high frequency induction melting furnace adopts IGBT series and parallel induction heating technology as its core. Designed to melt metal into liquid using high temperature, this machine is suitable for smelting various metals including iron, steel, copper, aluminum, zinc, and precious metals.

Technical Parameters

Model	LSW-30KW
Input Power	30KW
Input voltage	Three phase 380v 50hz
Voltage range	340V~420V
Oscillation frequency	25-35Khz
Current(max)	52A
Continuous load rate	100%
Cooling water flow(controller)	25L/Min 0.1mpa
Weight	48kg
Dimension	265600540mm

Key Features

High efficiency: Metal can be heated to its desired temperature, even its melting point, instantly.
Energy saving: The induction heating machine adopts IGBT from & LC series circuit design, saving energy up to 15%-30%.
Low cost: The heating time is short, significantly reducing metal loss compared to other heating methods.
Easy installation: Following the user manual, even non-professional persons can install the machine easily.
Stable operation: Complete protection system ensures worry-free operation.
Environmentally friendly: Uses electricity, producing minimal waste gas and water.
