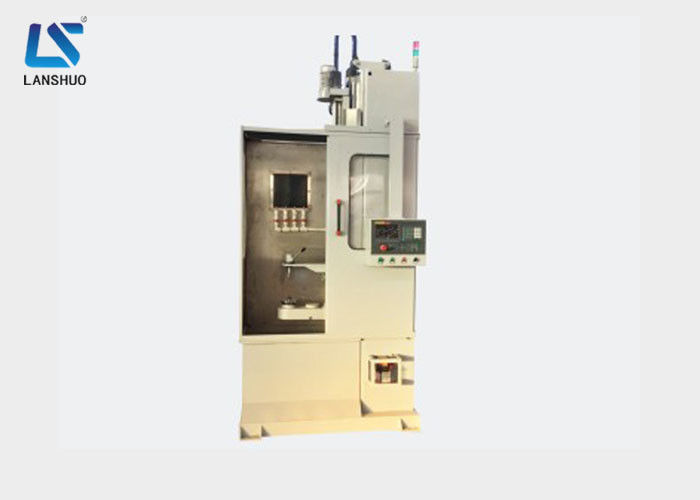

CNC Vertical Induction Hardening Machine 1000mm Quenching Length
  • CNC Vertical Induction Hardening Machine 1000mm Quenching Length
  • CNC Vertical Induction Hardening Machine 1000mm Quenching Length
  • CNC Vertical Induction Hardening Machine 1000mm Quenching Length
CNC Vertical Induction Hardening Machine 1000mm Quenching Length

CNC Vertical Induction Hardening Machine 1000mm Quenching Length

Place of Origin CHINA
ブランド名 ZHENGZHOU LANSHUO
証明 CE
Model Number LCN-1000
製品詳細
Maximum quenching length:
1000mm
Swing diameter:
600mm
Workpiece speed:
60-450r/min
Maximum workpiece load bearing:
100kg
The dimension of workpiece:
length 1000 mm,diameter 900 mm,weight up to 1000 kg.
Quenching rate:
200-3000mm/min
Machine positioning accuracy:
0.1mm
Quenching method:
Continuous scanning quenching; timed quenching; segmental scanning quenching;
Quenching speed adjustment:
Steplessly adjustable
Quenching Lift:
servo motor
Control method:
CNC system
ハイライト:

CNC vertical induction hardening machine

,

1000mm quenching length induction machine

,

induction hardening machine with warranty

支払いと送料の条件
Minimum Order Quantity
1 set
価格
6000-8000USD
Packaging Details
plywood packaging
Delivery Time
5-8 working days
Payment Terms
T/T
製品説明
Gear High Frequency Vertical Induction Hardening Quenching Machine
Key Specifications
Maximum quenching length 1000mm
Swing diameter 600mm
Workpiece speed 60-450r/min
Maximum workpiece load bearing 100kg
Workpiece dimensions Length 1000 mm, diameter 900 mm, weight up to 1000 kg
Quenching rate 200-3000mm/min
Machine positioning accuracy 0.1mm
Technical Features
  • Multiple quenching methods: Continuous scanning, timed, and segmental scanning
  • Steplessly adjustable quenching speed
  • Servo motor controlled quenching lift
  • CNC control system (KND)
  • Dual operation modes: Automatic and manual
  • CNC-controlled cooling and heating systems
  • Stepless speed regulation for workpiece
Physical Specifications
Machine weight 900kg
Machine dimensions Length 1620 × width 1340 × height 2600mm
Product Gallery
CNC Vertical Induction Hardening Machine 1000mm Quenching Length 0 CNC Vertical Induction Hardening Machine 1000mm Quenching Length 1 CNC Vertical Induction Hardening Machine 1000mm Quenching Length 2 CNC Vertical Induction Hardening Machine 1000mm Quenching Length 3 CNC Vertical Induction Hardening Machine 1000mm Quenching Length 4 CNC Vertical Induction Hardening Machine 1000mm Quenching Length 5
CNC Vertical Induction Hardening Machine 1000mm Quenching Length 6
