| Place of Origin | CHINA |
| ブランド名 | ZHENGZHOU LANSHUO |
| 証明 | CE |
| Model Number | LSW-30 |
| Parameter | Value |
|---|---|
| Power | 30KW |
| DC current | 50A |
| DC voltage | 500V |
| Input voltage | Three-phase 380V/420V/440V, 50-60HZ |
| Heating frequency | 25-50KHZ |
| Air switch | 3*100A |
| Ground wire | 1mm² |
| Water pressure | 0.15-0.2MPa |
| Dimension (after packing) | 750mm × 350mm × 720mm |
| Weight (after packing) | 58KG |
| Component | Specification |
|---|---|
| Input power cord | 10mm² copper wire |
| Input power control switch | 3*100A |
| Equipment grounding wire | 1mm² soft copper wire |
| Component | Specification |
|---|---|
| Number of water connections | Water intake: 1, Water outlet: 1 |
| Water pipe specification | Inlet/outlet pipe inner diameter: 25mm |
| Cooling system options | 2m³ water tank + 1.5kw circulating pump (head 25m, flow 10m³/h) or 2P chiller |
| Item | Quantity |
|---|---|

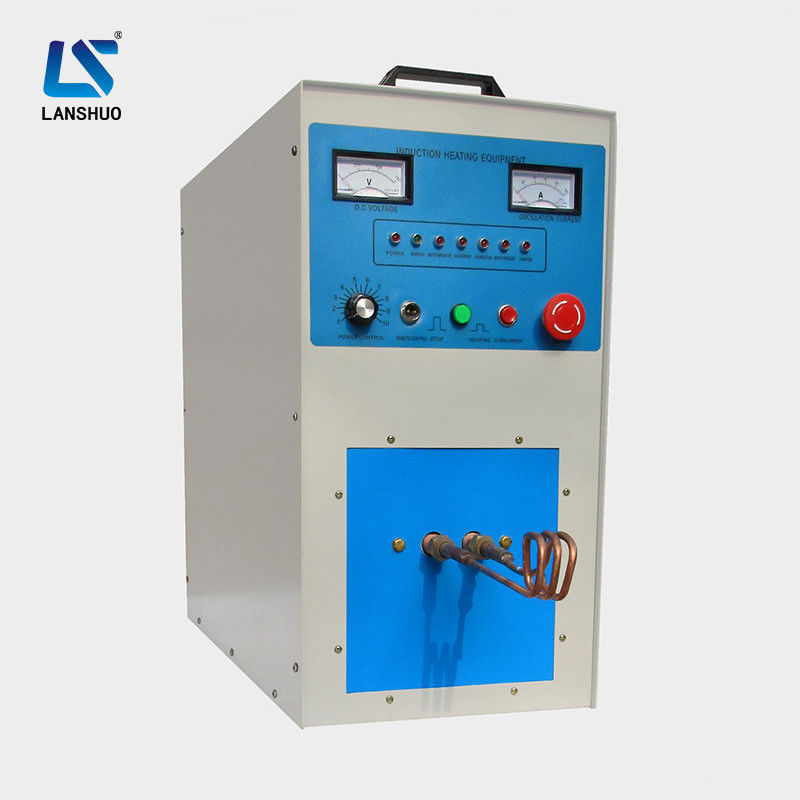

| 30kw induction brazing machine | 1 set |
| Foot switch | 1 set |
| Induction coil (custom designed for workpiece) | 1 set |
