誘導の溶ける炉
>
|
| Place of Origin | CHINA |
| ブランド名 | ZHENGZHOU LANSHUO |
| 証明 | CE |
| Model Number | KGPS-100 |
| Parameters | |
| Rated power | 100KW |
| Melting capacity | 100KG |
| Matching transformer capacity | 150KVA |
| Incoming voltage | 380V,three-phase,50-60HZ |
| Medium frequency | 1000-2000HZ |
| Medium voltage | 750V Phase |
| DC voltage | 500V Phase |
| DC current | 200A Phase |
| Rated tempersture | 1800℃ |
| Melting time | 40-50min |
| Cooling system | 20T closed cooling water tower |

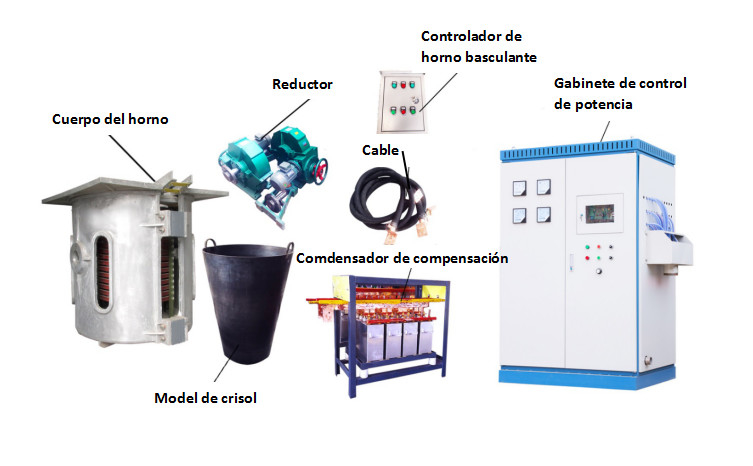

| Complete equipment configuration | |
| 100kw main control cabinet | one |
| Furnace body | one |
| Reducer | RZS231,one |
| Water cooling cable | 180mm² ,two cables |
| Instructions | one |
| Capacitor holder | one |
| Tilting furnace control box | one |
